Description
- Transducer beamwidth: 20° x 135°
- Transducer cable length: 20 ft
- Transducer number of pins: 21

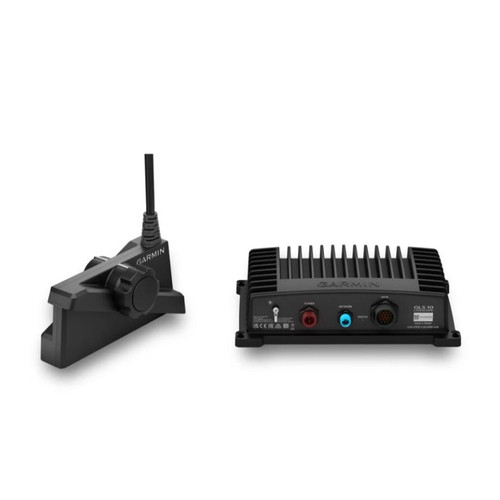

- Dimension: GLS 10 sonar black box: 9.7" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm); LVS34 transducer: 6.4" x 3.1" x 1.9" (16.2 x 7.8 x 4.8 cm)
- Weight: GLS 10 sonar black box: 4.3 lbs (2.0 kg); LVS34 transducer: 2.25 lbs (1.02 kg)
- Water rating: IPX7
- Temperature range: GLS 10 Black Box: Operating: -15 C to 70 C; Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C
- Power input: 10-32 V
- Power usage: 21 W typical, 58 W max
- Fuse: 7.5 A
- Compass-safe distance: 4" (0.1 m)
- Frequency: 530 - 1,100 kHz
- Transmit power: 500 W
- Maximum depth: Down and Forward: 200' (61.0 m)
- Sonar Type: Live
- Target Separation @100': 14"
- Perspective Mode Mount Included: Yes
- Garmin Marine Network Ports: 1 (small connector)
